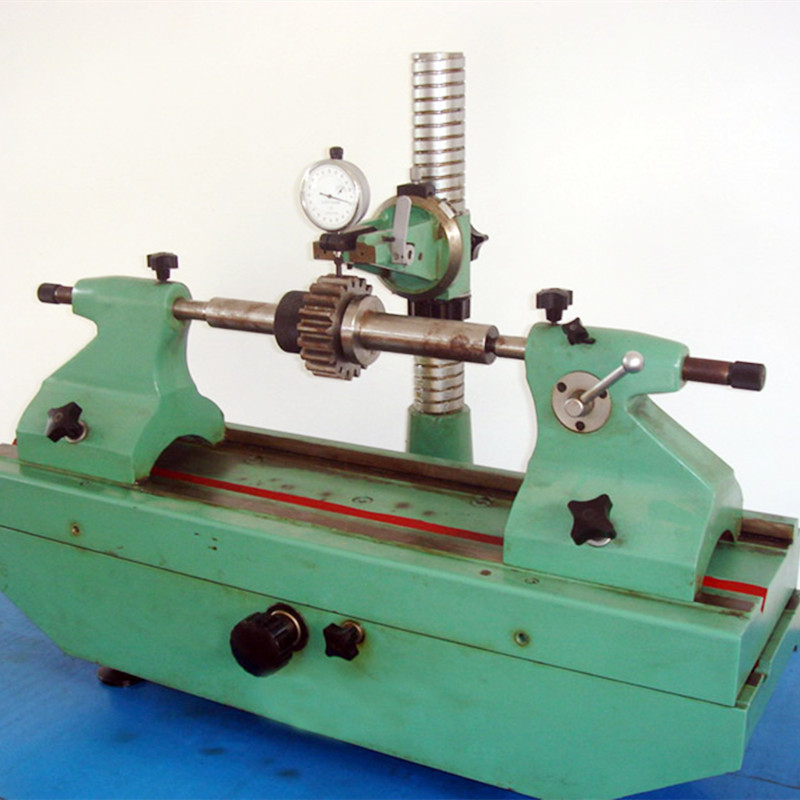

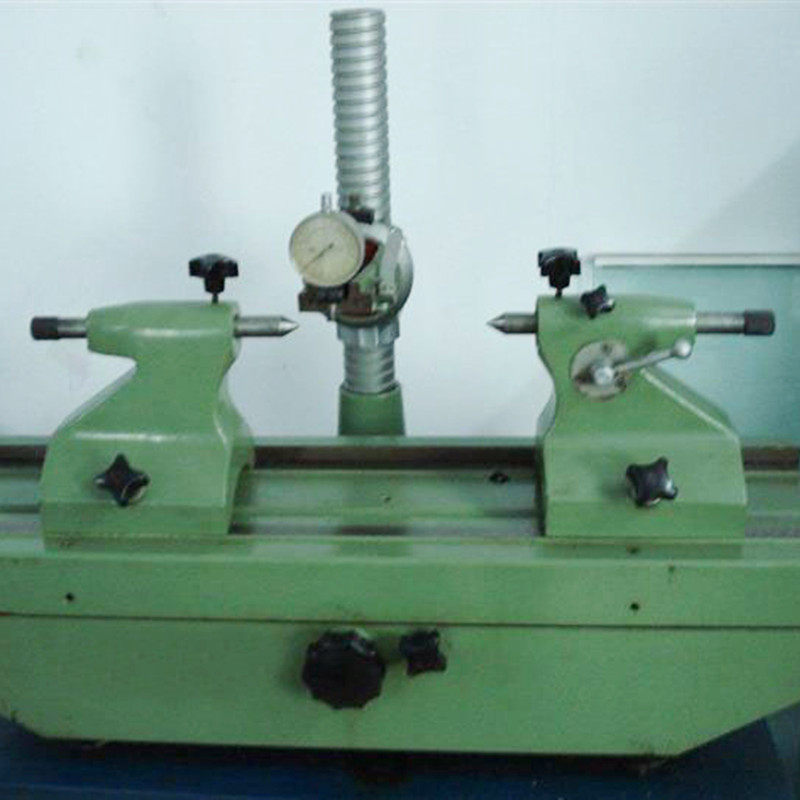

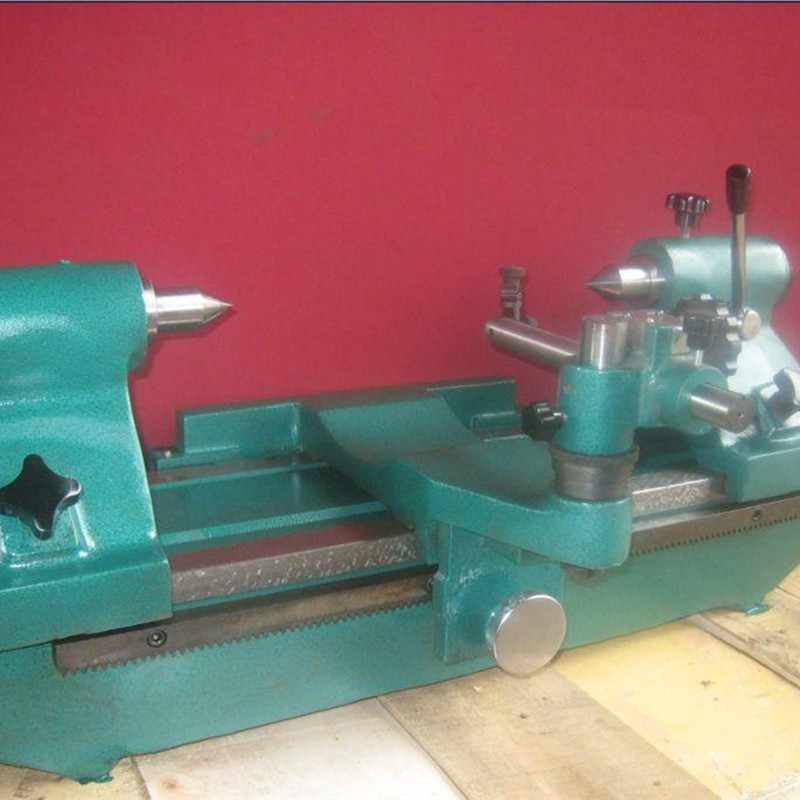

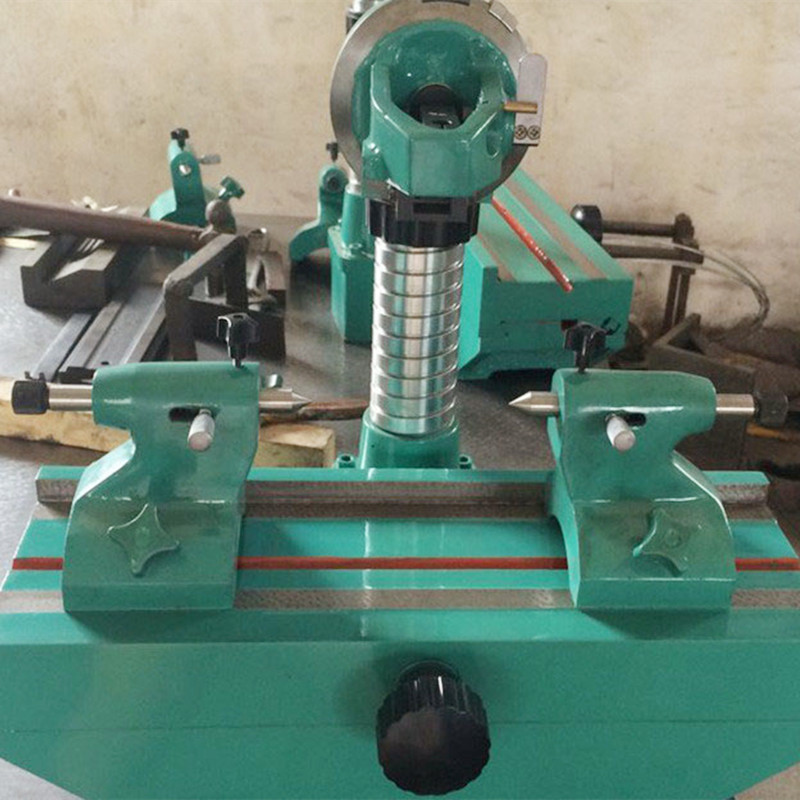

Runout Tester
Product Advantages
The instrument has the advantages of simple structure, convenient operation, quick loading and unloading of the tested parts by the hand handle of the top seat, and high measuring efficiency.
Product Description
-
surveying operation rules
- 1.The deflection tester is a precise testing instrument. The operator must master the operation skills of the instrument, maintain it carefully, and assign a special person to use it.
- 2.The deflection tester must always keep the equipment in good condition. The installation of the equipment should be balanced and reliable. The guide surface should be smooth and free of bumps. The coaxiality tolerance of the two centers should be within the range of L = 400mm. The coaxiality tolerance of a and B directions should be less than 0.02mm.
- 3.Before the workpiece inspection, check the accuracy of the deflector with L = 400mm inspection rod and dial indicator, and use it only after it is qualified.
4, When detecting the workpiece, it should be handled with care. No tool or workpiece is allowed to be placed on the guide surface.
5, After the completion of workpiece inspection, the instrument shall be maintained immediately. The guide rail and top sleeve shall be oiled to prevent rust, and the surrounding environment shall be kept clean.
6, A specially assigned person shall be assigned to inspect the accuracy of the deflector at the end of each month to ensure that the equipment is in good condition and record the actual measurement.

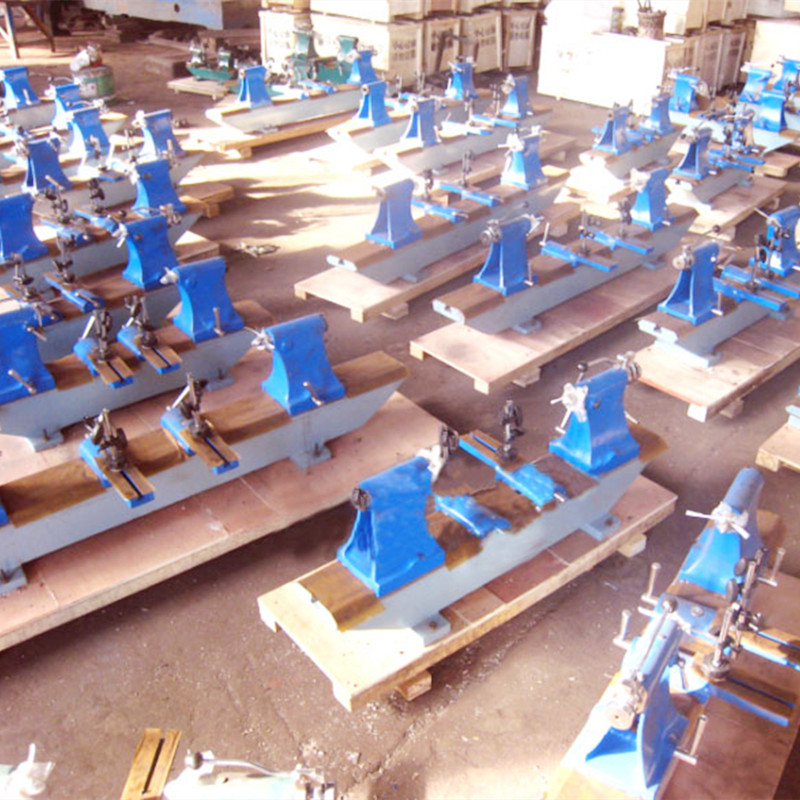

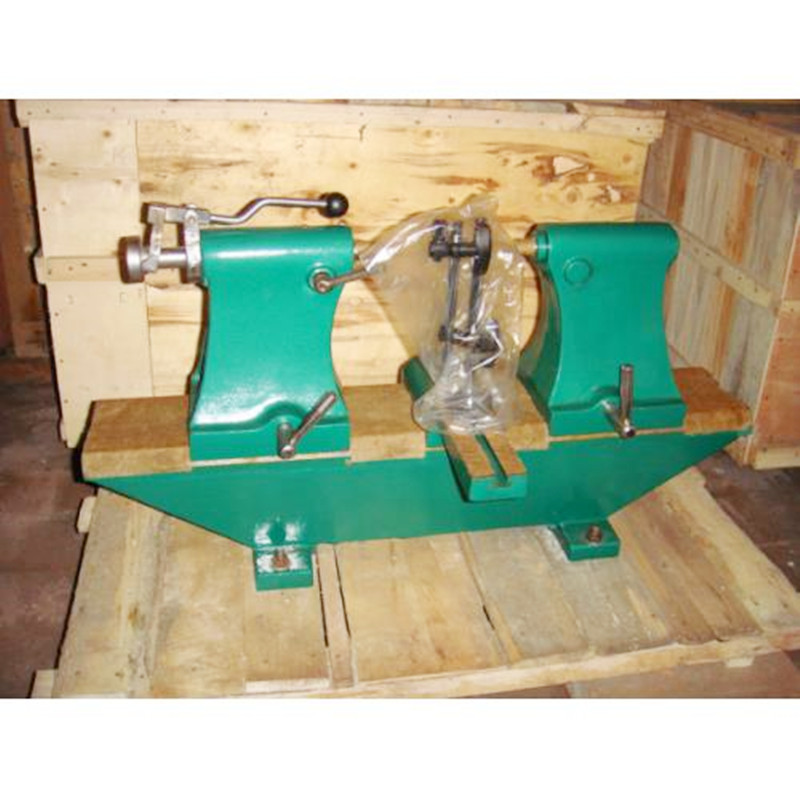

Packing of deflection tester: wooden case (also can be customized according to user’s requirements)
Color of deflection tester: green and blue are generally selected for deflection tester (or according to user’s requirements)
Product Parameter
|
size mm |
center height mm |
diameter mm |
parallel um |
vertical um |
|
300 |
170 |
270 |
<=8 |
<=5 |
|
300 |
300 |
560 |
<=8 |
<=5 |
|
500 |
250 |
460 |
<=8 |
<=5 |
|
500 |
300 |
560 |
<=8 |
<=5 |
|
1000 |
250 |
460 |
<=10 |
<=8 |
|
1000 |
300 |
560 |
<=10 |
<=8 |
|
2000 |
230 |
400 |
<=30 |
<=20 |
Product Parameter
Place of Origin：Hebei
Warranty：1 year
Customized support：OEM
Brand Name：Storan
Model Number：2001
Product name：Radial runout detector
Material：HT250-350
Size：300-2000mm
Package：plywood box
raw material：HT250
Certificate：ISO9001
Grade：1 grade
Shipping：by sea or AIR
Keyword：deflection tester
Packaging Details：plywood
Port：tianjin
Supply Ability：1200 Piece/Pieces per Day
Product Detail Drawing
